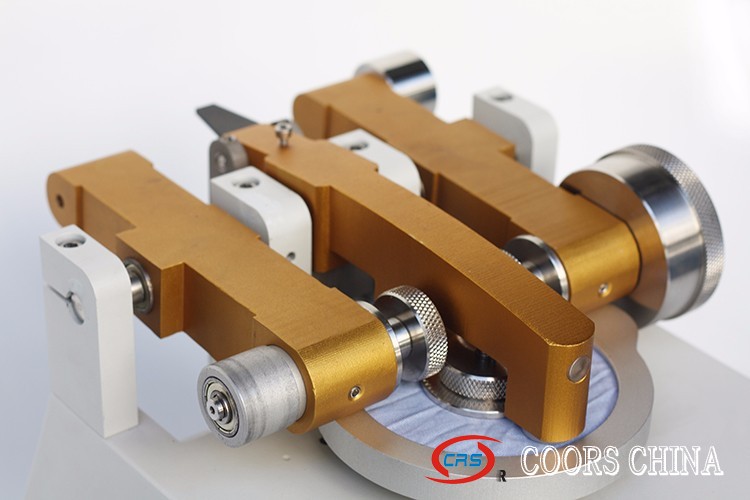

Fabric taber abrasion tester,iso5470 taber wear & abrasion tester

See Larger Image
Price: Negotiable
Delivery period: From the date of payment Days of delivery
Valid until: Long-term effective
Last updated: 2023-11-25
Views: 1917
Inquiry
★★Company Information★★
Name: SUZHOU YANUO WORLD INSTRUMENT CO.,LTD.
Service-Hotline: +86-400-6789-291
Suzhou hotline:+86-512-68559199
Fax:+86-512-68559189轉806
Mobile Number:+86-18915433994
ContactQQ:1006931501
Samples:NO.368 South Yinzhong Road Wuzhong Economic Development Zone Suzhou China


Product details

Product Description:



Brief Introduction:

TABER abrasion resistance tester and wear resistance tester can be replaced by wheel and weight,
which apply to the abrasion resistance performance test on fabric, cardboard, paint, leather, tile, glass and natural rubber,
method is simple and easy to operate,which has been widely used in various industry's testing laboratory.
Abrasion tests, the material is standard wheel friction after a certain number of turns,
evaluate its abrasion resistance material weightlessness rate by calculation.
Abrasion wheel after pre grinding standard method, test results can reach very high consistency.



Core advantages:
Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment,
wearing can be preset number of turns. Arm can match with balance weights, accurate weight balance abrasion arm,
to realize the ASTM standard which requires 125 g pressure requirements
Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy
Brand motor, mute, low noise, smooth operation

Applicable Standards:
ISO 9352, ISO 5470, ISO 7784, ASTM D1044, ASTM D3884, ASTM D4060, GB/T 5137.1, QB/T 2726, DIN 53109

Specifications:
spinning speed:adjustable within the range of 30-75r/min (digital)
The sample surface diameter:100mm
Sample table diameter:113mm
setting range of Number of turns:1-999999
Air pressure:250g
Weight (based on purchase)Counterweight:250g,500g,750g,1000g
Wheel pressure range:125g,250g,500g,750g,1000g,1250g
Vacuum arm height:Adjustable
power:220V,50Hz
Size:220mm×380mm×300mm
weight:20kg



Basic configuration:
G270:Taber Abrasion Resistance Tester
(250g,500g,1000g)
Weight × 1 set:(250g, 500g, 1000g each one pairs)
Optional Accessories:NA



Accessories:
27001:1 pair of 125g Balance weights and fixed screw
27002-1:1 pair of Import original abrasion wheel CS-10×1
27002-2:1 pair of Import original abrasion wheel H-18×1
27003:Import the original decoration sandpaper (grinding disc) S - 11 x 1 package (100 pieces/package)
27004:Import original sample sticker S - 36 (50 / package)
27005:Diamond wheel polisher (friction wheel polishing Taber)
XC001:One set of the vacuum cleaner

Detail Images:
