I. Overview:

CRS-PV-ML dynamic mechanical load test machine developed with reference to the latest standards IEC62782 latest products. CRS-PV-ML-type dynamic mechanical load test machine in addition to containing the new standard IEC62782 proposed dynamic load testing capabilities, compatible with the company's CRS-PV-ML1 mechanical load test machine functions (static load test). CRS-PV-ML type mechanical load test machine used to validate the components on the different mounting angles withstand wind, snow or ice and other static and dynamic load capacity. The machine is used to detect PV modules of the compressive strength, dynamic holding pressure technology, simulation load test, in order to understand the product load state, stress resistance.

Second, the main technical parameters:

1. Equipment complies with IEC 62782, IEC 61215, IEC61646, UL1703 standards
2. Adaptation: photovoltaic modules
3 load is applied by: cylinder driven under the pressure or vacuum sucker pull
4 payload testing component size: 2200 × 1100mm
5. Component surface uniform load: under the pressure: +1400 Pa ~ +6000 Pa; pull-1400Pa ~-3000Pa
6 Pressure accuracy: ± 5% (optimum ± 2%).
7 loading forms: positive, negative
8 Number of 32 groups of vacuum suction cups; sucker diameter 150mm
9. Man-machine dialogue, color LCD touch screen, Chinese / English display
10. PLC programmable control


Three main functions:

1 Dynamic mechanical load test (tensile and compression test cycle, the new standard IEC62782)
Users can set pressure, tension, pressure, time, tension time, cycles and other parameters, click Start on the touch screen can be automatically completed the trial.

2 static mechanical load test (normal tension, pressure test, meet the standard IEC61215)
Users can set the pressure, tension and other parameters, to maintain tension or pressure for an hour, repeated three times.

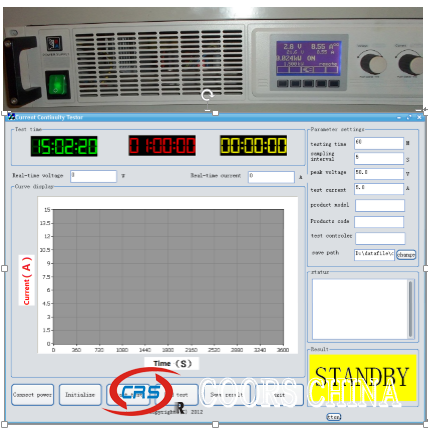

3 energized continuous monitoring
-Technology R & D can be equipped with a power-continuity test systems, real-time monitoring of photovoltaic module electrical continuity of the internal circuit


Fourth, the basic structure of the system:

1. Testing Machine Material and structure: aluminum alloy extrusion production, moveable aluminum frame

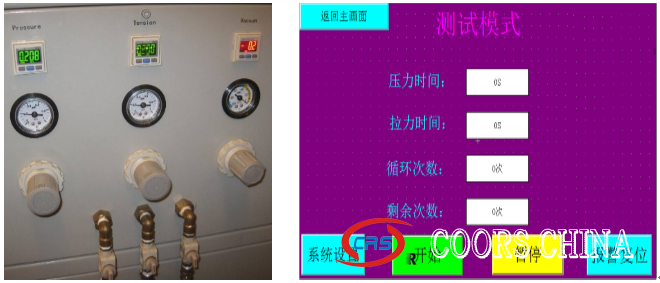

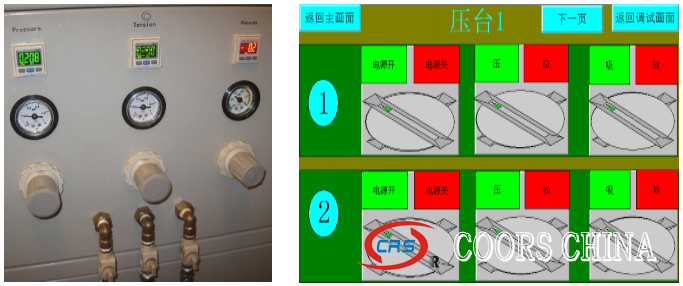

2. Components can be added to the pressure on the regulator adjustment and pressure values displayed on the operation panel.
3. Components are installed using the fixture.
4, sucker pitch adjustable, universal structure, ensure the module surface even by force.
5, the assembly support point position can be easily adjusted to meet standard requirements.
6, two-dimensional linear cylinder position adjustment structure to meet the cylinder position adjustment quick and easy.


Fifth, the basic system configuration:

1, the control system: PLC controller (Mitsubishi), touch screen (domestic)
2, the voltage regulation system: pressure regulator, pressure switches, etc. (Japan SMC)
3, the vacuum system: vacuum generator, sucker (Japan PISCO)
4, Pneumatic system: cylinder, solenoid valves, etc. (AirTAC)
5, Connection: connector, and windpipe (AirTAC)
6, the electrical system: timer, relay, AC contactor (Schneider)
7, power continuity: DC power supply (imported from Germany), computers (brand)
