Product Description:

Application:
Rubber DIN Abrasion Resistance Tester is applicable to flexible materials, rubber, tires, conveyor system, transmission belts, sole, leather and so on. There is adequate test area, operation and sampling are simple. It should be used together with a balance. It mainly consists of power system, rotary roller, sample clamping device, automatic stop system and rack and small driving gear for driving the sample, seat and dust collector.

The major working principle is that under some specific load and on sand cloth of a specific grade, the column-shaped sample is placed on the sand cloth for abrasion for a specific journey. In this way, the mass of the abrasion from the sample can be measured by using the balance. With this and the density of the sample, the abrasion volume can be calculated

Applicable Standards:
STANDARDS
DIN 53516
ASTM D5963
ISO 4649
Note: this din rubber abrasion resistance tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features:
Accurate setting of the abrasion stroke by Delta digital counter;
Very easy to operate the moving system, even by one finger;
Keep safety system without crashing by electric sensor;
Use shield to protect the screw pole clean and lubricated rotating,
Very simple transformation between static test and rotary test.

Default Configures:
Main unit:1pc
Located plate for sample settle:1pc
Mold for samples:1pc
Knife for samples:1p

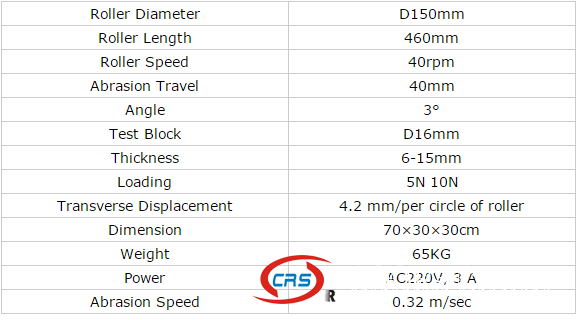

Specification:
a.Sample:diameter(Φ16mm±0.2mm), thickness(8mm~16mm)
b.Loads:self-load (2.5N), 3 weights( 2.5N±0.05N,5N±0.1N, 10N ±0.2N), can get 7 kinds of weights: (5, 7.5, 10,12.5,15,17.5, 20)N
c.Inclination: 3°
d.Sample moving speed per circle: 4.23±0.04 mm/r
e.Sample rotation speed: 0.8r/min or static
f.Roller size:150±0.2mm, lengthen 480mm, speed 40rpm±1rpm
g.Abrasion stroke:40m or 20m
h.Emery cloth:60# or confirmed
i.Size:710mm×270mm×44mm
j.Weight:About 45kg
k.Power:AC230V±23V, 50Hz, 0.5A

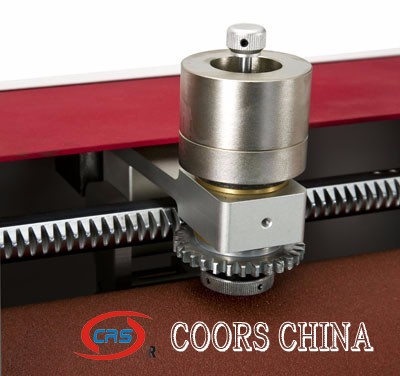

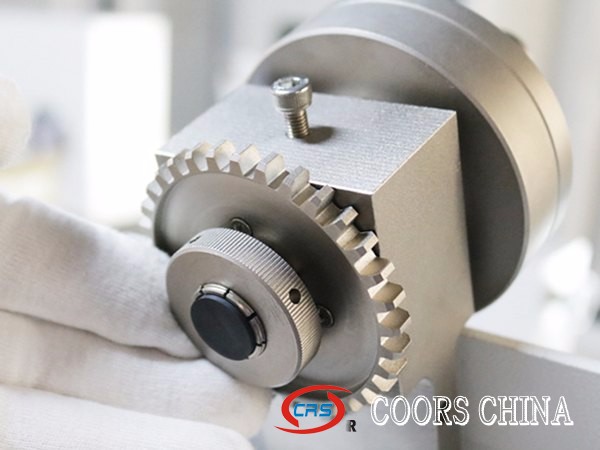

Detail Images:
